Case Study: Precision Laser 3D Scanning and CAD Modeling of a Truck Chassis

Client Objective: Design Custom Body Enclosure for a Pick-Up Truck

A leading service company aimed to develop a custom body enclosure tailored specifically to one of their pickup trucks. Although they found various CAD models of the truck chassis online, the accuracy of those models was questionable and unsuitable for their high-precision design and fabrication needs. To eliminate guesswork and ensure precision, they turned to V3D Technologies for a reliable, accurate digital solution.

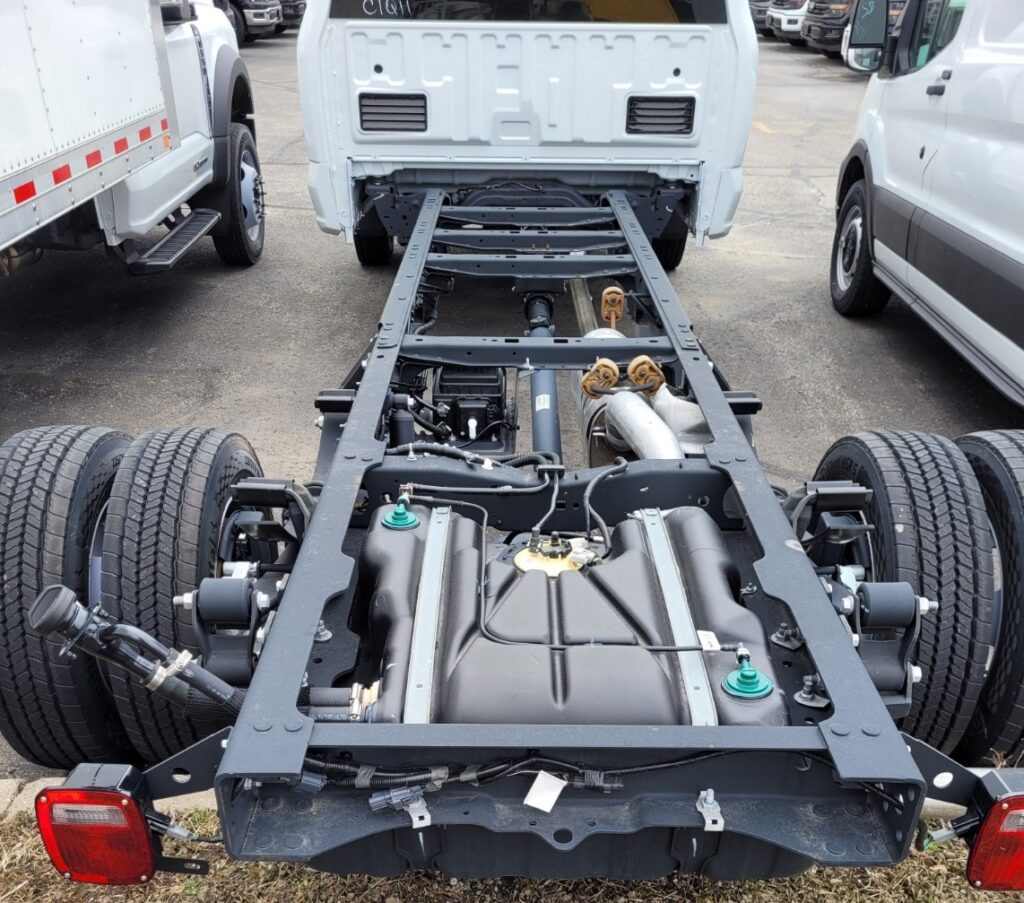

Pick-Up Truck Chassis

Our Solution: From Physical to Digital – Custom Laser 3D Scanning and CAD Model of the Chassis

V3D Technologies deployed a certified metrology-grade Laser 3D Scanner and a skilled technical team to the customer’s site. After reviewing the project scope and design requirements, we began scanning the physical truck chassis on location.

Step 1: High-Accuracy 3D Scanning

Within a few hours, our team captured a high-resolution 3D mesh (polygon model) of the truck chassis. This mesh provided a faithful digital representation of the physical structure, including critical design features and dimensional data.

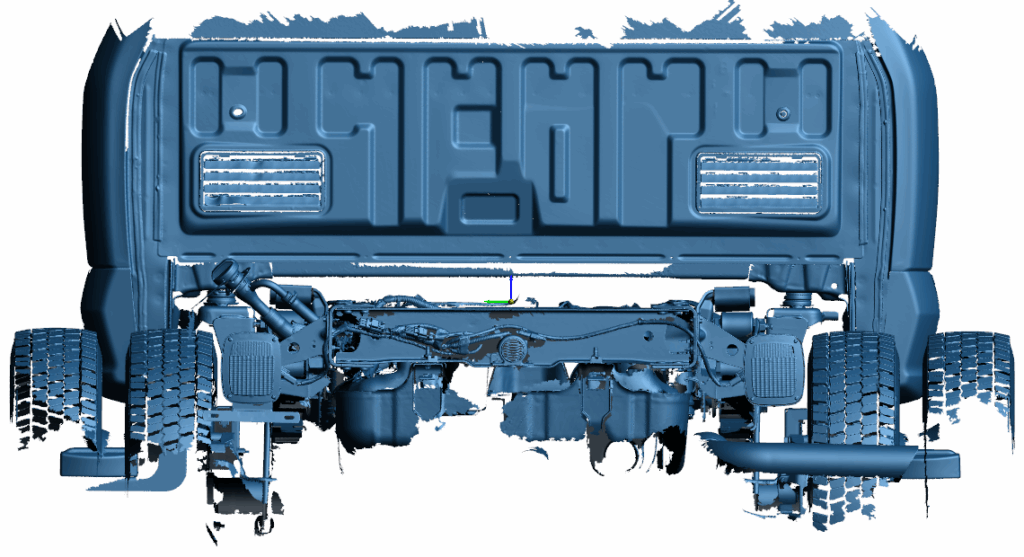

Polygon Model (scanned mesh) of Pick-up Truck

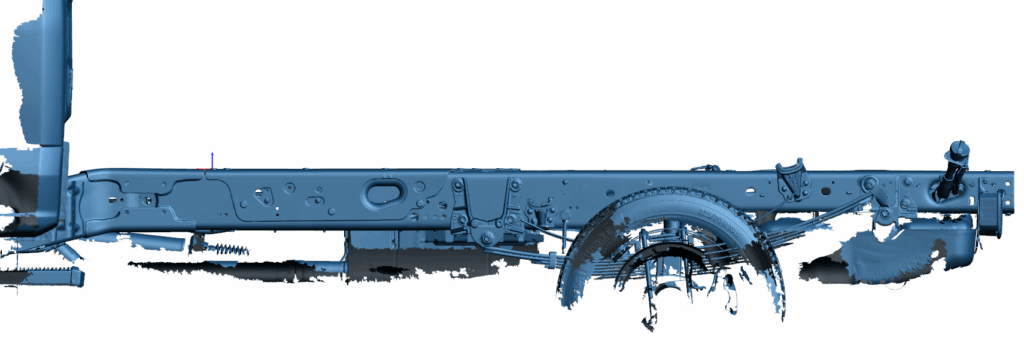

Polygon Model (scanned mesh) of Pick-up Truck

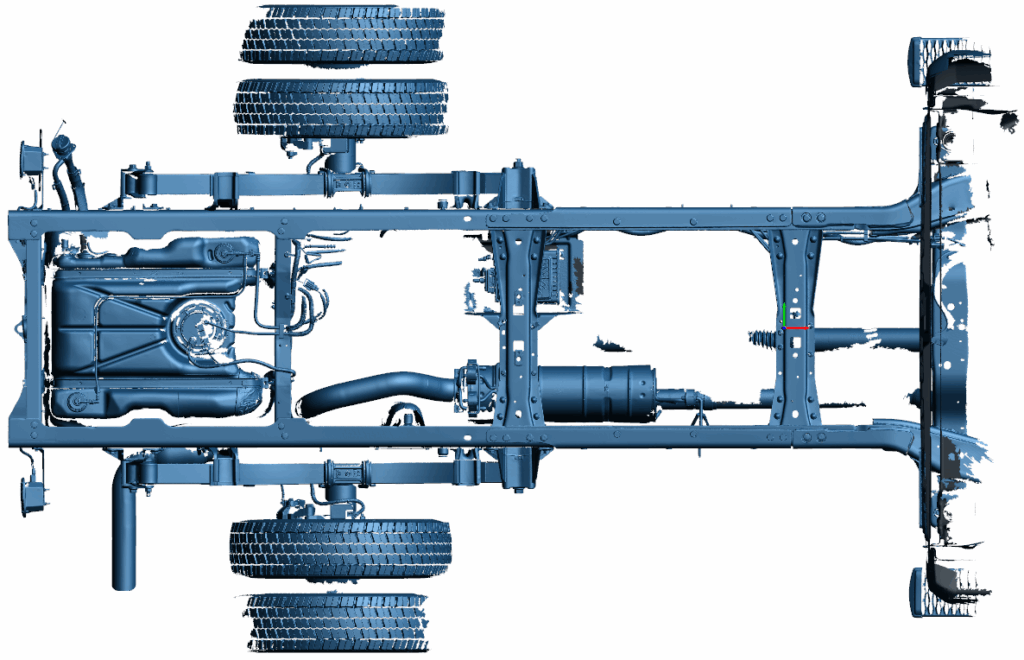

Polygon Model (scanned mesh) of Pick-up Truck



Polygon Model (scanned mesh) of Pick-up Truck

Step 2: CAD Modeling of Chassis Rails

Using advanced Scan to CAD Reverse Engineering software, we converted the 3D mesh into a detailed CAD model. This model included all necessary features, such as the chassis rails, bolt holes, and geometric references needed for designing the custom enclosure.

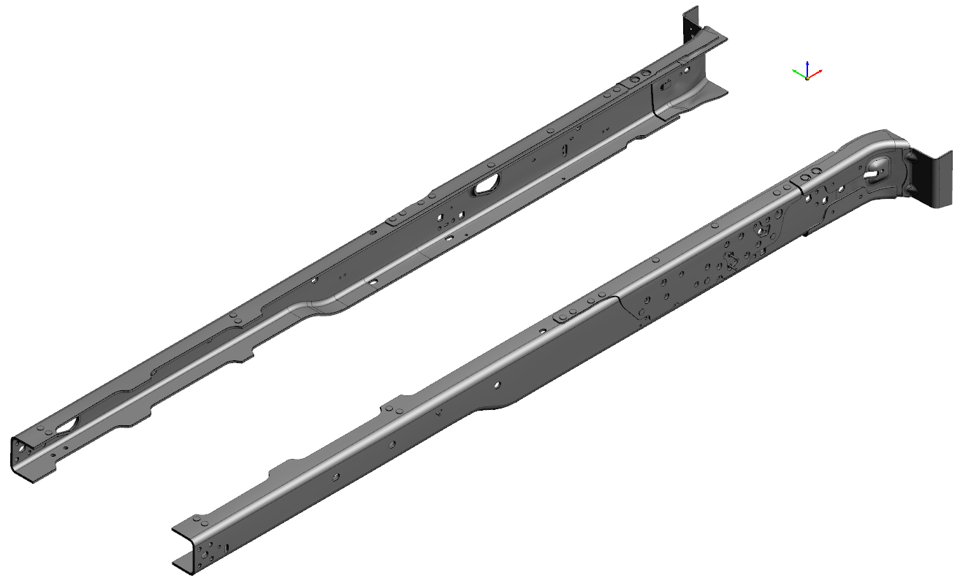

CAD Model of Pick-Up Truck Chassis Rails

Step 3: Deviation Analysis

To validate accuracy, we performed a deviation analysis between the scanned mesh and the final CAD model. This ensured dimensional integrity and gave the client confidence that the CAD output truly reflected the physical truck chassis.

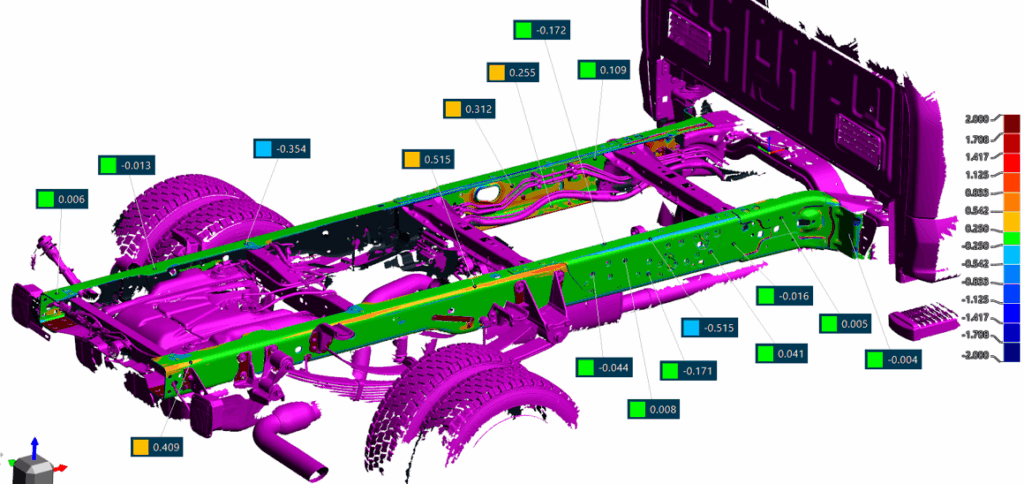

Deviation between CAD Model and Polygon Model
(shown on polygon model, in mm)

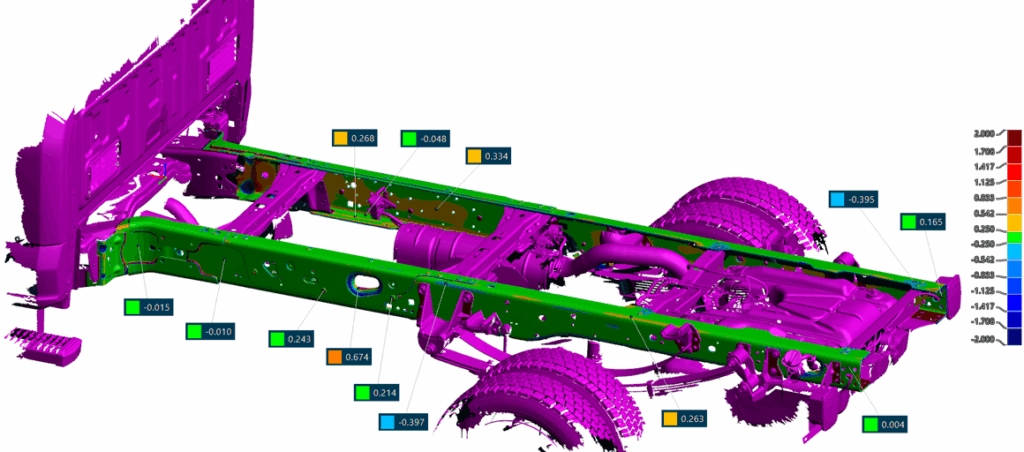

Deviation between CAD Model and Polygon Model
(shown on polygon model, in mm)

Conclusion:

V3D Technologies enabled the client to move forward with their custom body design confidently, knowing their CAD data was accurate and project-ready. By leveraging high-precision 3D scanning and reverse engineering, we eliminated reliance on generic or inaccurate online models and ensured a perfect fit for downstream manufacturing and design.

This case demonstrates how our laser 3D scanning services bridge the gap between physical assets and digital engineering—streamlining workflows, improving design precision, and saving time and resources for our clients.
